Section 2.0 Intake System & Starter (Part 2)

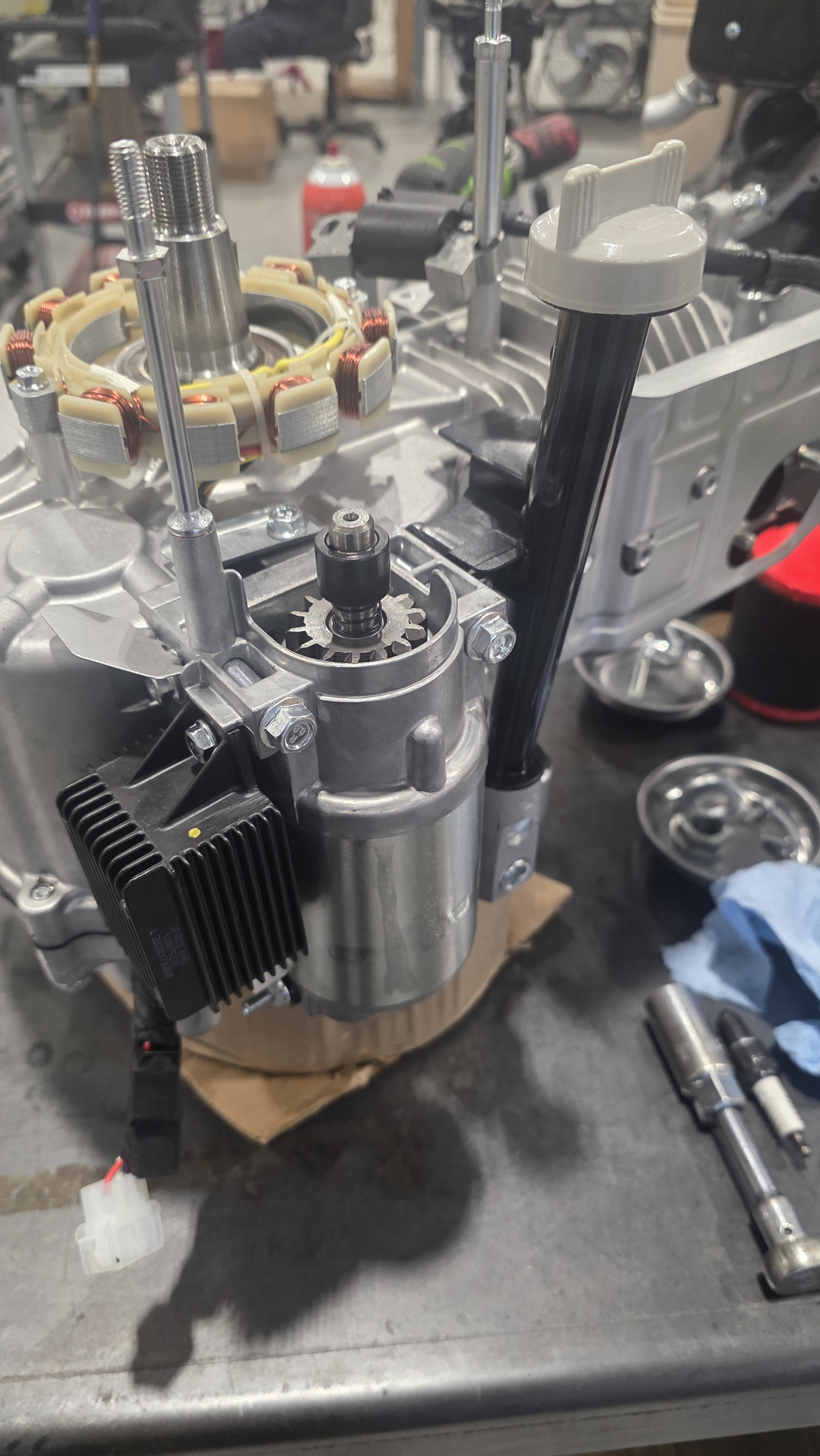

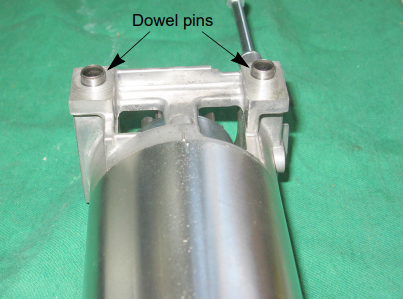

Remove Starter (2x 12mm bolts). Key Note: Save the two Alignment Dowels!

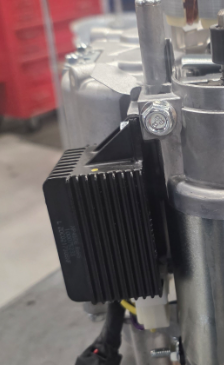

Disconnect Stator.

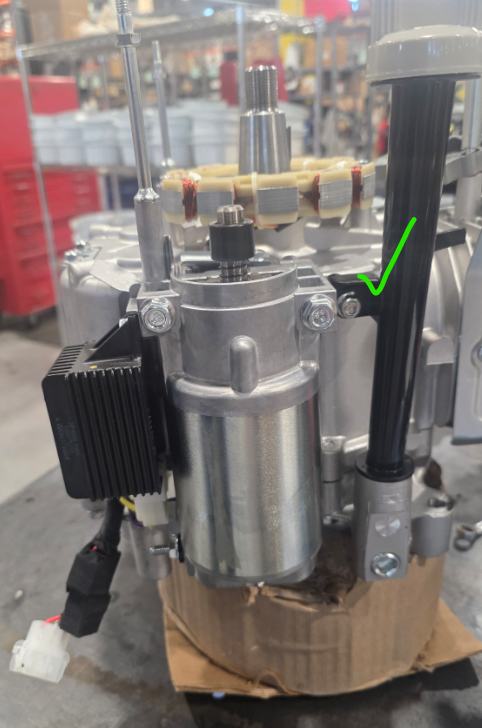

Remove Dipstick Bolt.

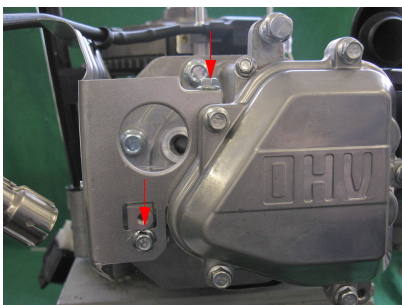

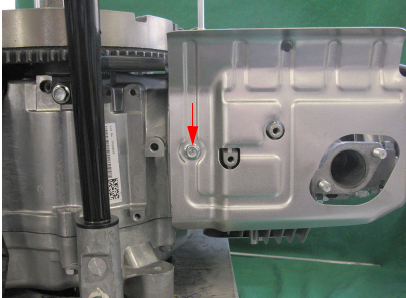

Remove Heat Shield (3x 10mm bolts) - the coil comes off with this sheild.
