Section 1.0 Flywheel Removal (Part 2)

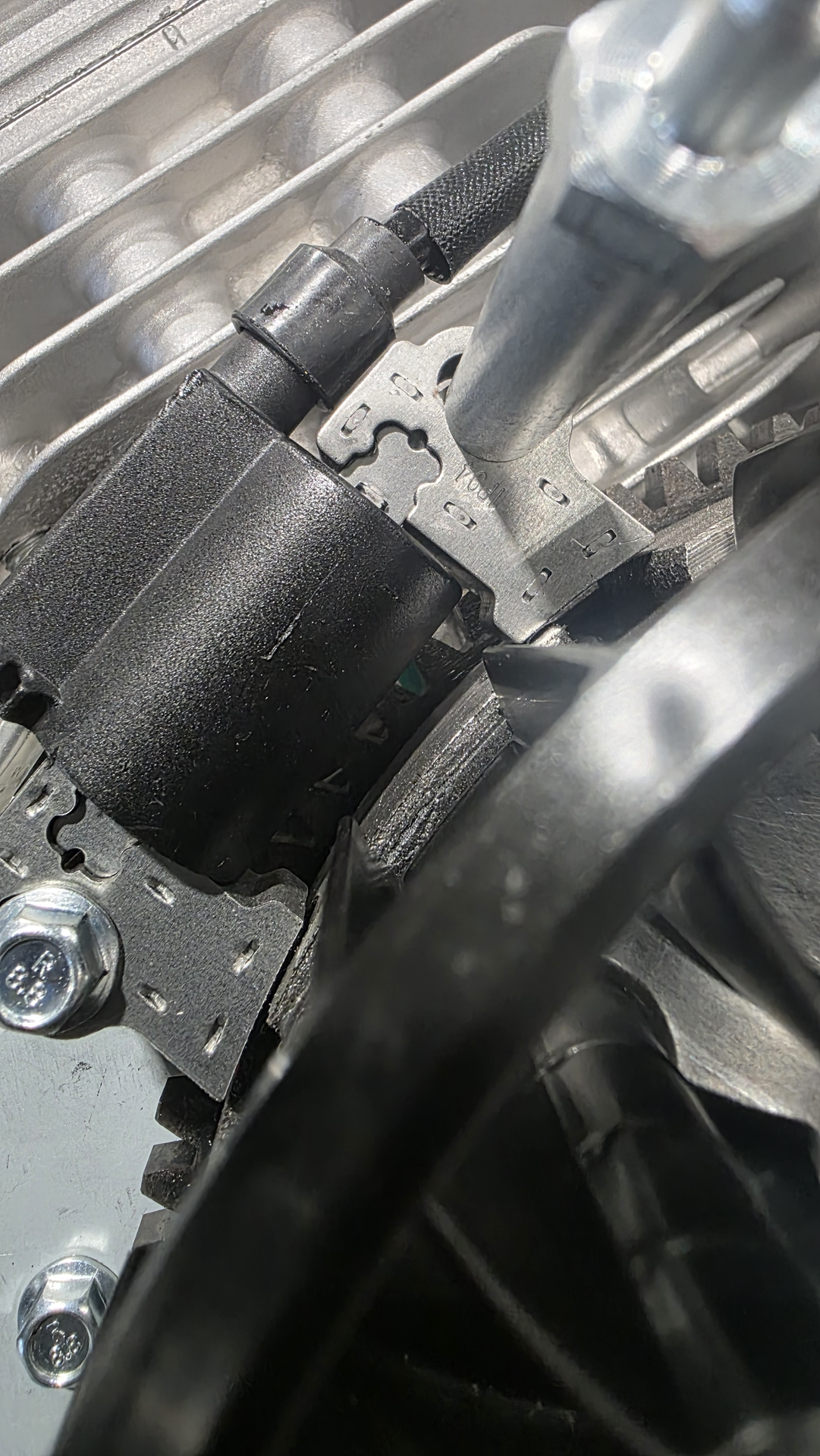

Remove Studs and Coil Hardware (10mm & 12mm sockets). Coil hangs.

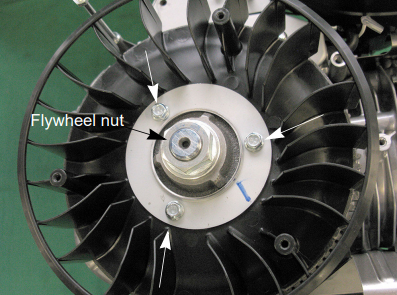

Remove 30mm Flywheel Nut.

Remove Fan Cup and Fan.

Remove the Flywheel (use puller if necessary).
